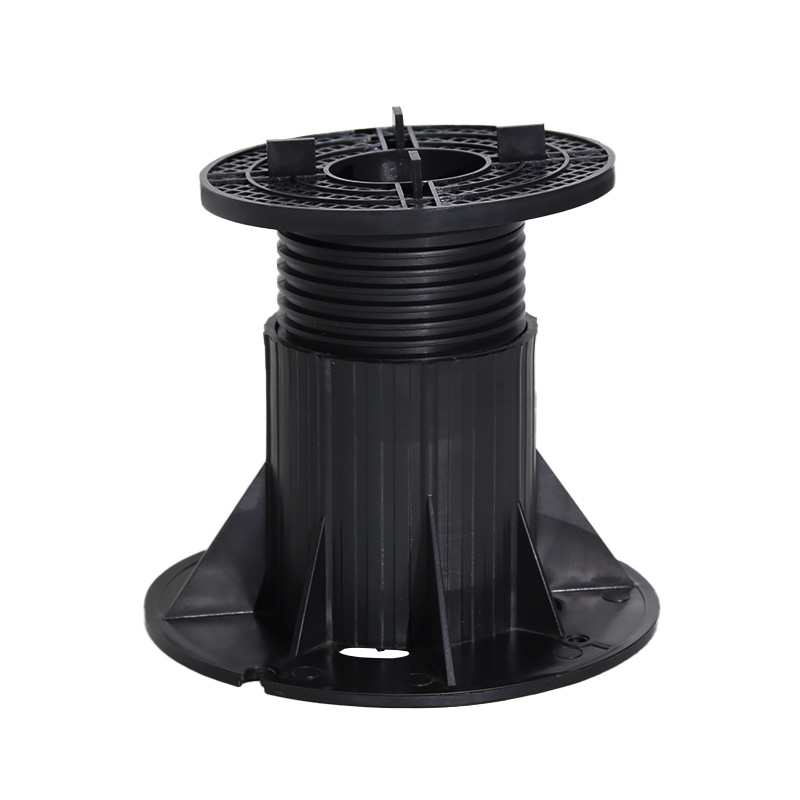

TA-VA Self-Leveling Systems
The smart evolution of the TA-A series. Featuring a specially engineered articulated head to automatically compensate for substrate gradients up to 5%, ensuring a perfectly horizontal surface without complex manual shimming.
Technical Specifications
- ModelTA-VA Series (Self-Leveling)
- Slope Correction0-5% (Articulated Head)
- Height Range65 mm — 520 mm
- Bearing Weight500 ~ 900 KG
- Head Dia.140 mm
- Base Dia.180 mm / 200 mm
- MaterialRecycled Modified PP, Temp: -30°C to 60°C

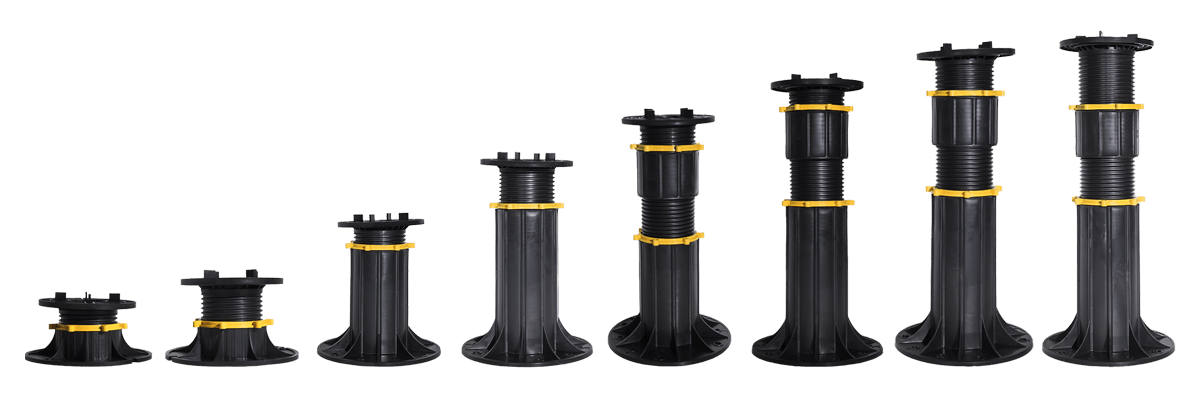

TA-VA Series Models
Select quantities for your self-leveling configurations and add them to your Quote List.
TA-VA0-01
H: 65-85mmTA-VA0-03
H: 90-110mmTA-VA0-04
H: 120-170mmTA-VA0-06
H: 130-210mmTA-VA0-N05
H: 190-275mmTA-VA0-N06
H: 240-325mmTA-VA1-N03
H: 265-430mmTA-VA1-N04
H: 315-480mmTA-VA1-N05
H: 300-470mmTA-VA1-N06
H: 350-520mmDon't need auto slope correction?

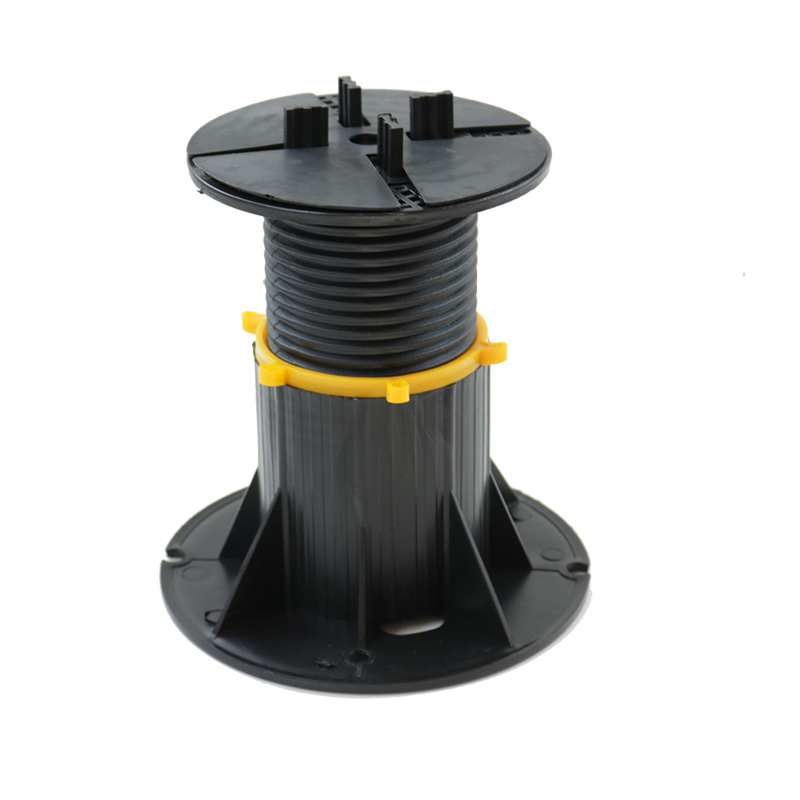

Explore the full range TA-A Series (Up to 820mm)
View TA-A Master SeriesPedestal Components

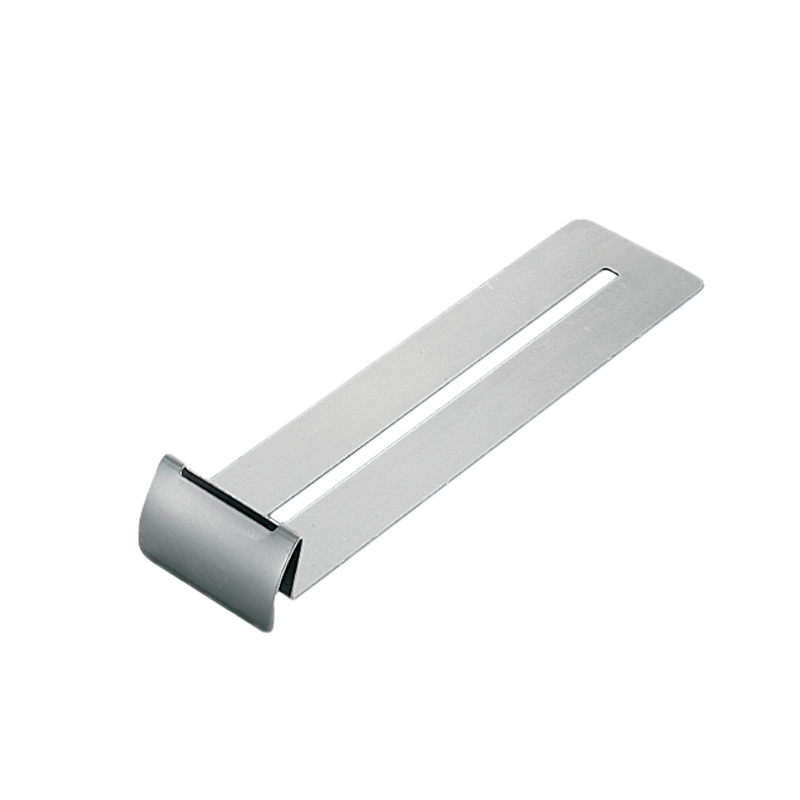

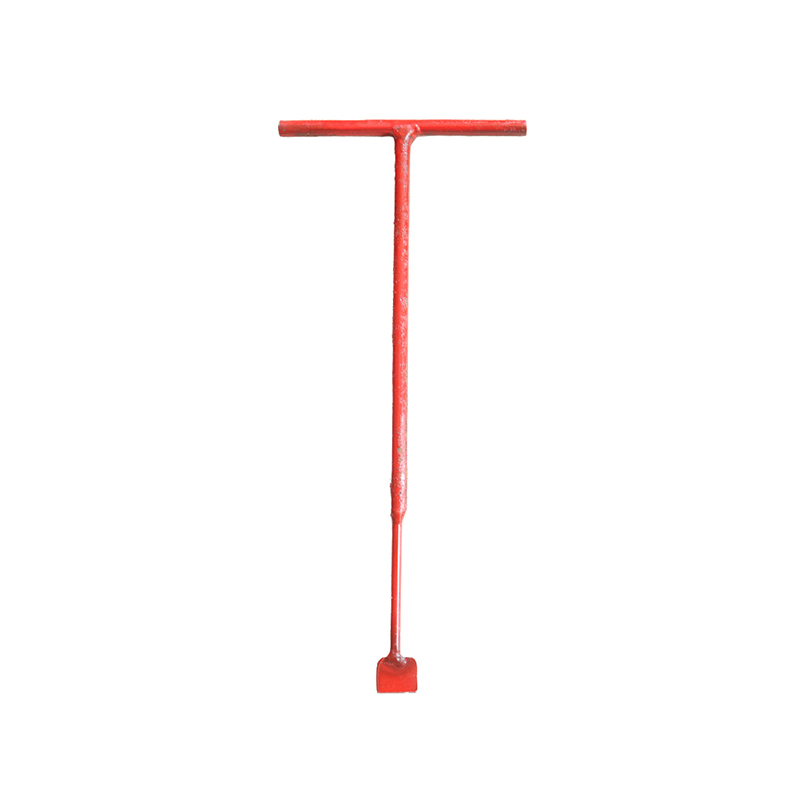

Equip your self-leveling pedestals with our comprehensive range of accessories.
Project Cases
Calculate Pedestals for Your Project
From surface area measurements to spacing recommendations, ensure a flawless and efficient installation using our online calculator.

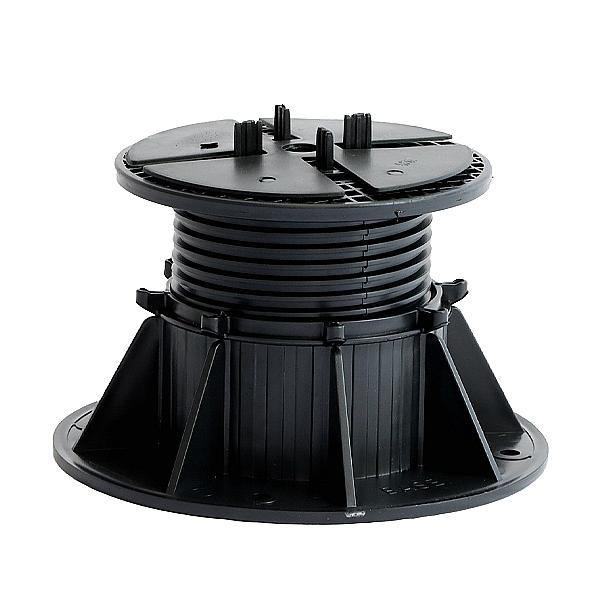

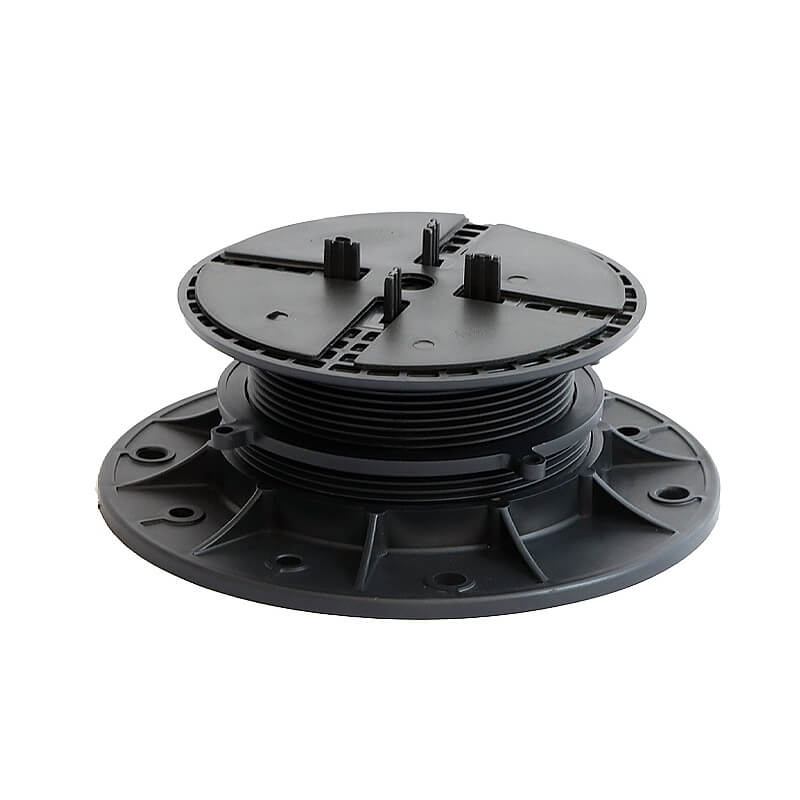

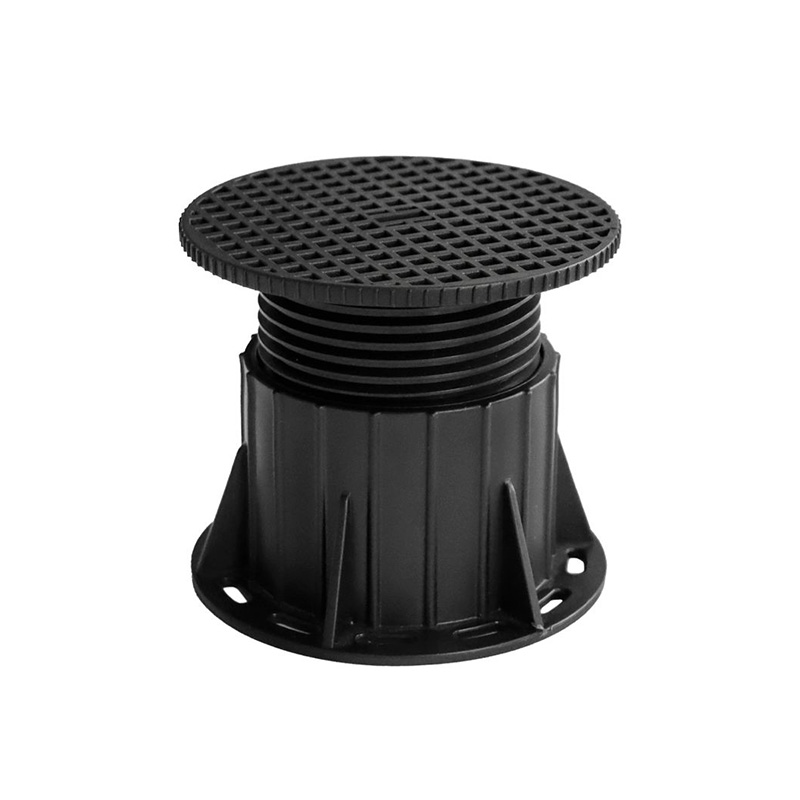

Explore Other Pedestal Series
